Produce accurate electrical systems with the UK’s leading calculation software

Trimble Electrical Designer 2D offers electrical engineers and contractors one comprehensive and easy-to-use solution for 2D design and calculations.

The Trimble Electrical Designer 2D's suite has everything you need to design and validate your Low Voltage projects. ProDesign, Protect, SingleCable and Powernet offer an easy-to-use interface with all the calculations and detailed options needed for in-depth design, engineering and reporting.

First Name: This field is mandatory Last Name: This field is mandatory Company: This field is mandatory Email Address: This field is mandatory Phone Number: This field is mandatory Country or Region: This field is mandatory Comments:

Trimble will process your personal information, business information and geolocation and either we or our reseller will respond to your request for information and sales support. Trimble's Privacy practices are described here: Privacy Notice

Fast, accurate and BS 7671 compliant

Design real-world electrical systems faster with the UK's leading software. Reduce errors and boost efficiency by using integrated, manufacturer-approved component data and multi-region compliant calculations.

The single, comprehensive 2D design and calculation solution

Trimble Electrical Designer 2D - Base

Entry-level design and calculation software

Get started with up to 25 board, Low Voltage projects. Includes:

ProDesign MR 25
Protect LV MR
SingleCable Pro MR
Instant access updates
Trimble MEP support

Trimble Electrical Designer 2D - Pro

Perfect for more complex projects

Up to 100 board capacity and High Voltage elements. Includes:

ProDesign MR 100
Protect HV MR
SingleCable Pro MR
Instant access updates
Trimble MEP support

Trimble Electrical Designer 2D - Pro+

Suitable for any project size

Low Voltage designs, High Voltage elements, and short circuit analysis. Includes:

ProDesign MR 400
Protect HV MR
SingleCable Pro MR
PowerNet MR
Instant access updates
Trimble MEP support

Save time and improve accuracy with powerful features

Always compliant, up-to-date calculations

ProDesign calculates in accordance with, BS 7671 18th Edition Amendment 2, IEC 60364, ADDC & DEWA, NEN 1010, and VDE 100.

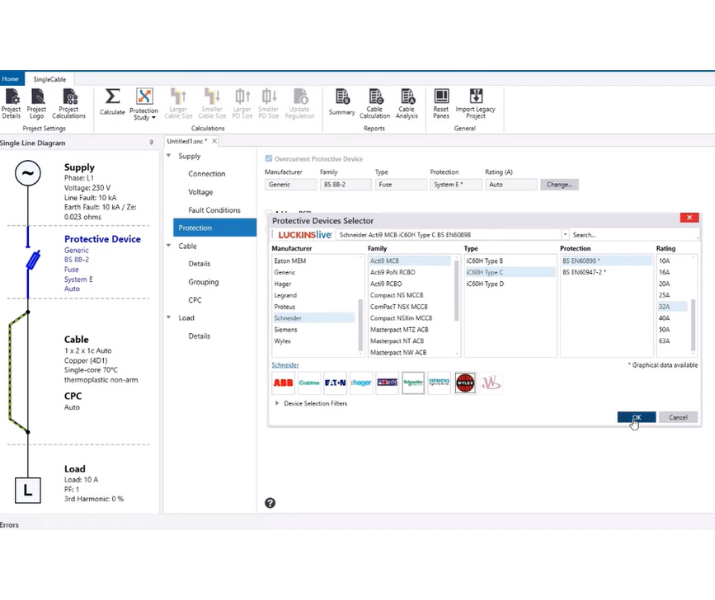

Access reliable manufacturer approved content

Directly within the software, you can find the latest manufacturer-approved data for protective devices, cables, and busbars.

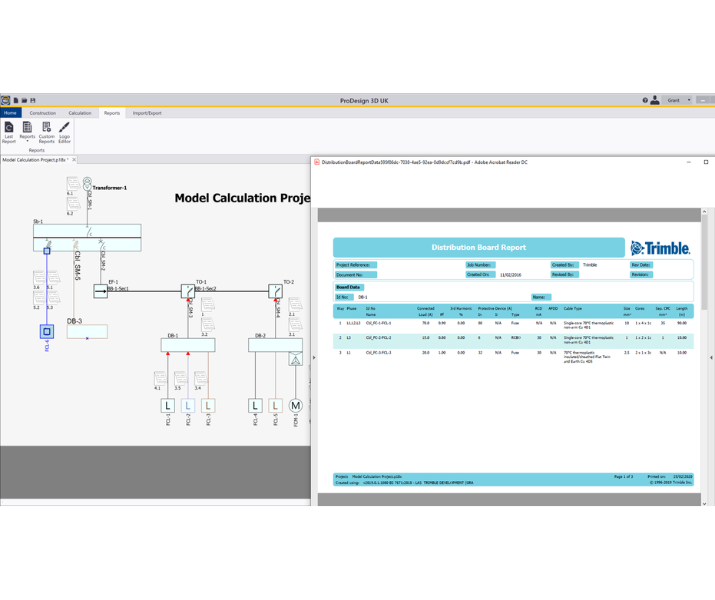

Quality reports

ProDesign and SingleCable’s comprehensive set of reports show exactly which local calculations each project adheres to, at the level of detail your client needs.

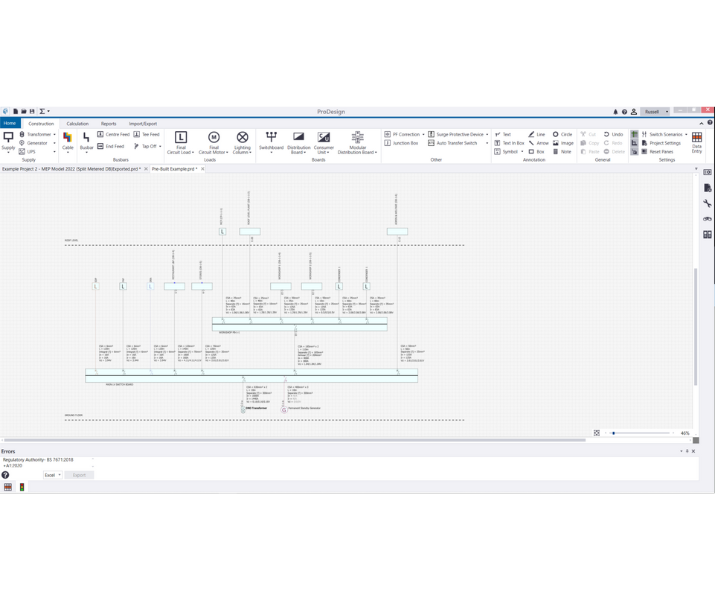

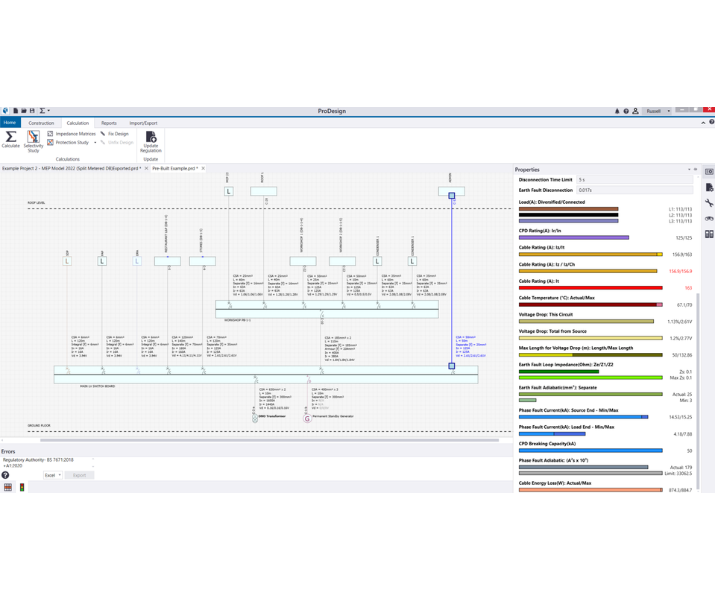

Easy to use interface

Make diagnosing and solving errors in projects easy by using index-linked calculation result summaries to find affected areas in the design.

"ProDesign provides us with a highly credible and widely recognised way of presenting our electrical designs and calculations. As a trusted electrical design platform, it gives customers and others involved in the project confidence in the design."

— Paul Lukehurst, Principal Engineer | EvoEnergy

READ CASE STUDY

Join over 45,000 Trimble MEP engineering users

Users of Trimble MEP's solutions range from small MEP design and contracting companies to large global engineering practices. A selection of UK customers include:
